龙门塑料切粒机

塑料切粒机

塑料切粒机KRT-J型切粒机有龙门和悬臂式两种规格。根据电机功率产量在300-1000
公斤每小时之间,建议切粒条数在1-40根之间。
KRT type dicing machine gantry type, cantilever type two kinds of
specifications. According to the motor power capacity between 300-1000 kg per hour, suggested that cutting a number between 1-40.
技术特点:

           操作安全可靠
          清理维护方便
          运行平稳、噪音低
          精度高,切粒断口平整。均匀、美观
          结构紧凑。易移动
          高耐用刀具和压辊,利于持续工作
                           Technical characteristics: safe and reliable operation.
                           Maintenance is convenient.
                           Smooth operation, low noise.
                           High precision, cutting grain fracture is flat and level. Uniform, beautiful.
                           Compact structure. Easy to move.
                           High durability knives and pressure roller, to continue to work.

型号 电机功率 调速方式 切粒条数 ******牵引速度 切粒尺寸 ******产量 旋转刀直径 旋转刀齿数 胶辊直径 外形尺寸
Model Power(kw) Speed-ad
Justing way
Noodle
Number
Max.towing speed(m/mim) Granule/pellet size(mm) Max
.Output(kg/h)
Rotate knifedia(mm) Blade number Robber roller dia(mm) Dimensions (mm)

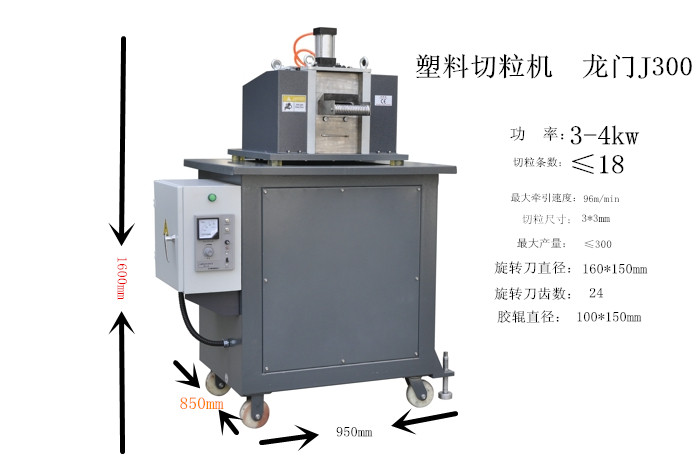

Krt-j-300 3-4 电磁滑差或变频器 18 96 3*3 300 160*150 24 100*50 950*850*1600

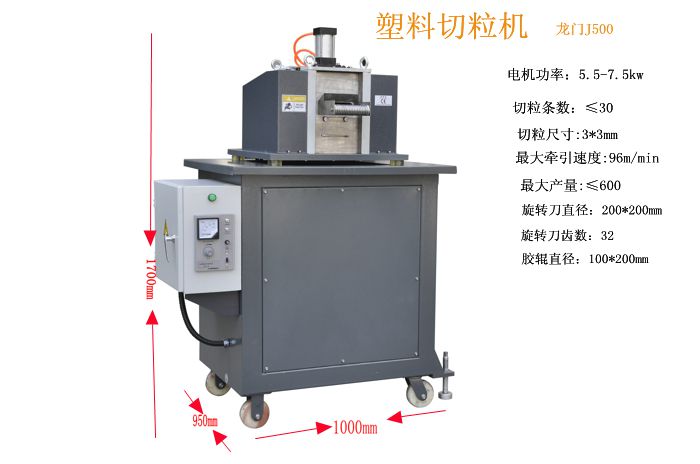

Krt-j-500 5.5-7.5 电磁滑差或变频器 30 96 3*3 600 200*200 32 10*200 1000*950*1700

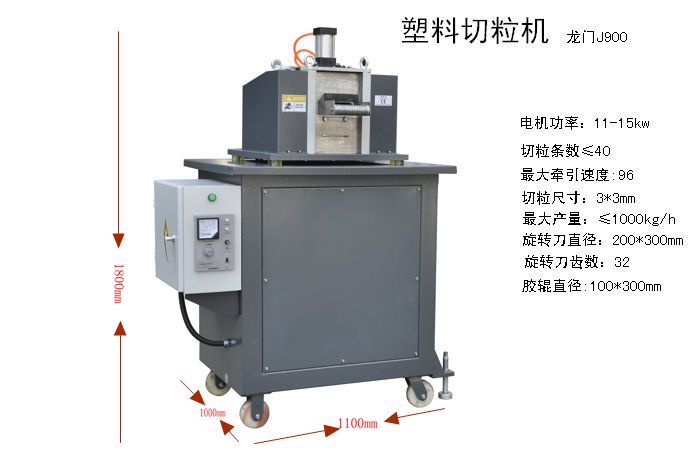

Krt-j-900 11-15 电磁滑差或变频器 40 96 3*3 1000 200*300 32 100*300 1100*1000*1800
